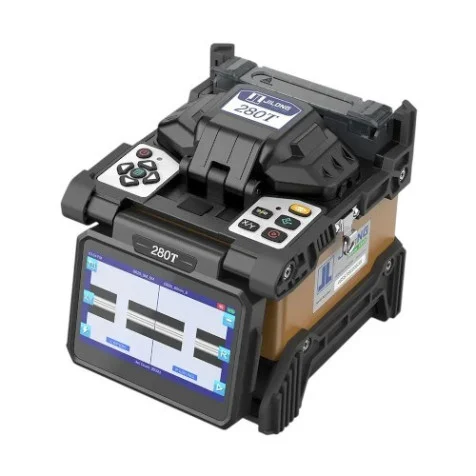

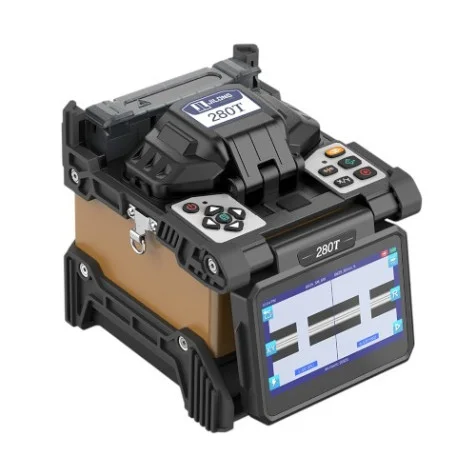

Jilong 280T All-Rounder Middle Trunk Line Fusion Splicer

Jilong 280T All-Rounder Middle Trunk Line Fusion Splicer
High-Performance Fiber Splicing for Trunk Line Networks

The Jilong 280TAll-Rounder Middle Trunk Line Fusion Splicer is a professional-grade fiber splicing machine, designed for high-capacity backbone fiber optic networks. Built with core alignment technology, it ensures minimal splice loss, fast operation, and reliable performance in all environments.

Key Features of Jilong 280T Fusion Splicer
Core Alignment Technology – Achieves ultra-precise fiber alignment for low splice loss
High-Speed Splicing & Heating – 8 sec. quick splicing & 18 sec. fast heating for maximum efficiency
User-Friendly 4.3-inch Touchscreen – Capacitive display for easy operation
Dual Camera System (320X Magnification) – Provides clear fiber visualization for accurate splicing
Smart Automatic Functions – Auto arc calibration, fiber identification & splice loss estimation
Powerful 6800mAh Battery – Supports 300+ splice & heat cycles per charge
Durable & Compact Design – Lightweight (1.9kg), rugged construction for field use
Large Data Storage – Saves 10,000 splice records & 2,000 result images
Wide Compatibility – Supports SM, MM, DS, NZDS, and G.657 fiber types


Jilong 280T Technical Specifications
Alignment Method: Core Alignment
Applicable Fiber Types: SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655)
Compatible Fiber/Cable: 0.25~3.0mm, Rubber-Insulated Fiber Cable
Fiber Cleave Length: 8-16mm
Splicing Time: 8 sec. (Quick Mode), 15 sec. (Standard Mode)
Heating Time: 18 sec. (Adjustable)
Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return Loss: >60dB
Electrode Life: 5,000 arcs (extendable with grinder)
Battery: 6800mAh, supports 300+ splicing & heating cycles per charge
Storage Capacity: 10,000 splice records, 2,000 images
Tension Test: 1.96~2.25N
Operating Conditions: -20°C to +50°C, 0-95% humidity, 0-5000m altitude
Weight: 1.6kg (without battery), 1.9kg (with battery)
Display: 4.3-inch capacitive touchscreen
USB 2.0 Port – For firmware updates & data transfer


Why Choose the Jilong 280T Fusion Splicer?
Perfect for Middle Trunk Line & Backbone Fiber Networks
Fastest Splicing & Heating Time – Maximizes Work Efficiency
Reliable & Rugged – Ideal for Harsh Environments
Large Battery Capacity – Suitable for Field Technicians
Best Price in Bangladesh (2025) – Great Value for Money
