Jilong KL-6300 Fiber Monster OTDR

Jilong KL-6300 Fiber Monster OTDR - Detailed Description

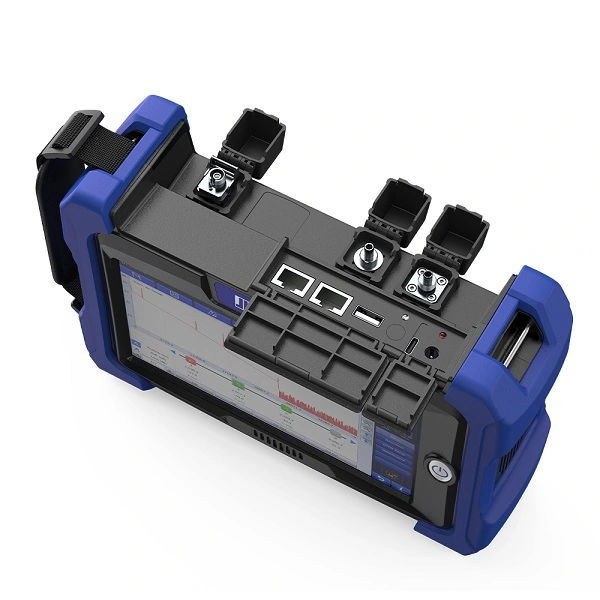

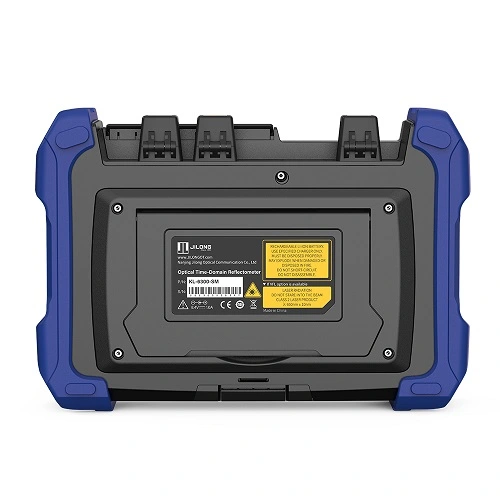

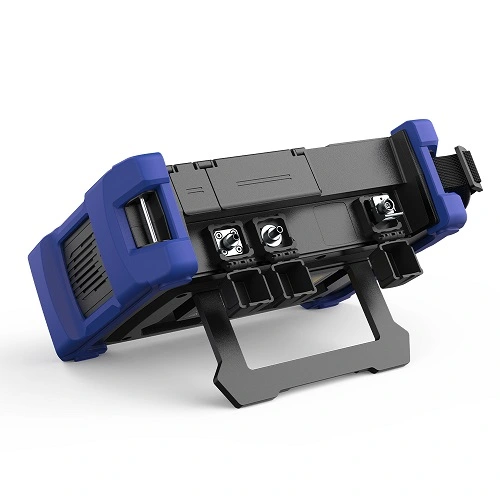

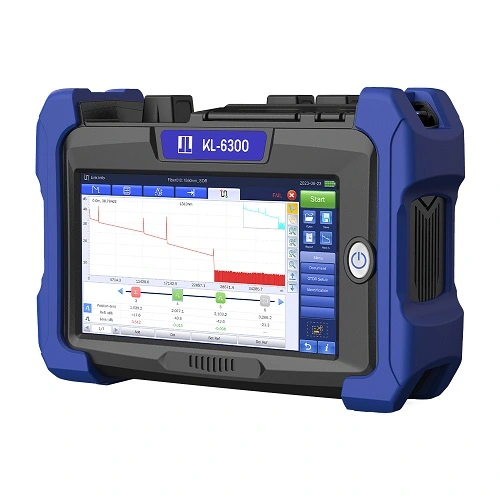

The Jilong KL-6300 Fiber Monster OTDR is a high-performance optical time-domain reflectometer designed for precise fiber testing and troubleshooting. Featuring a user-friendly interface, fast measurement speeds, and high-resolution analysis, it ensures accurate fault detection in fiber optic networks. Ideal for telecom, data centers, and FTTx installations.

Core Features:
1. Wide dynamic range 30-45dB

2. 7-inch color LCD touch screen

3. VNC/GPS/WIFI

4. Multi-trace analysis

5. F/P analytical judgment function

6. Smart map to analyze links graphically

Technical Specification:
Model

KL-6300-S2



Wavelength (nm)

1310/1550


Dynamic range (dB)

35/33


Number of optical port

1


Event dead zone★① (m)

0.8


Attenuation dead zone★② (m)

3


Multi-fiber Measurement

√



Multi-pulse Measurement

√

Spliters Measurement



Max 1:64







Applicable fiber

SM (ITU-T G.652)

Distance range (km)

0.1, 0.3, 0.5, 1.3, 2.5 , 5, 10 , 20 , 40 , 80 , 120 ,160 , 260, 320

Pulse width (ns)

3 , 5 , 10 , 30 , 50 , 100 , 200 , 300 , 500, 1000 , 2500 , 5000, 10000 , 20000

Number of sampling points

Max 250000

Sampling resolution

Min 0.04m

Distance measurement accuracy

±(0.75 m + Measurement distance × 2 × 10−5 + Sampling resolution)

Loss measurement accuracy

±0.03 dB/dB

Return loss measurement accuracy

±2 dB

Optical Power Meter Module (Built-in)



√















OPM

Wavelength

800 ~ 1650nm

Measure range

-70 ~ +6dBm

Measure accuracy

＜（±0.2dB or ±5%）

Display resolution

0.01dB

Optical input port

2.5mm Universal ferrule for FC,SC,ST/UPC

Stabilized Light Source Module (Built-in)



√















SLS

Wavelength (nm)

1310/1550







Output power

≥-10dBm

Modulation mode

CW, 270 Hz, 1 kHz, 2 kHz

Laser class

Class 1M or Class 1

Optical input port

OTDR port

Visual Fault Locator Module (Built-in)



√















VFL

Wavelength (nm)

650±10nm

Output power

10mW

Modulation mode

CW, CHOP (2 Hz)

Laser class

Class 3R

Optical input port

2.5 mm Universal ferrule type for FC,SC,ST

Fiber Inspection Probe (Built-in)





Optional















FIP

Pass / Fail

√

Magnification

400X

Resolution(um)

≥1.0

Electrical interface

USB2.0

Optical Connector

FC/UPC,SC/UPC,ST/UPC

CMOS size

1/3 inch

RJ45 Networks Test (Built-in)





√











RJ45

Applicable cable

CAT5, CAT6

Distance of Cable Collationl

300m

Distance of emitting signal

300m

GPS Module (Built-in)





Optional









GPS

Location accuracy

< 50m

Real-time Monitoring

support

WIFI Module (Built-in)





√











WIFI

Data transmission

√

Remote Control

√



General Specifications

Link Map

√

Pass/Fail judgment

√

Distance unit

m, km, mile, kf

PC Analysis Software

√

Languages

English, Español, Chinese, Português, Français, Русский，ภาษาไทย，한국어

Optical connector

FC/UPC (SC/UPC/APC、LC/UPC/APC 、FC/APC Optional)

Display

7-inch touch screen (Resolution: 1024 × 600)

Port

Charge port × 2, 12V - 2.5A & Type C

Operating temperature

'-10 ~ 50˚C (0 ~ 40°C when AC adapter is being used. 0 to 35˚C when battery is be charged)

Storage temperature

-20 to 60˚C

Altitude

4000 m

Humidity

0 to 90% RH (20 to 90% with 739874 AC adapter, non-condensing)

Power requirements

100 - 240V AC, 50/60Hz (AC adapter)

Battery

7.4V,10500mAh,≥77Wh

LED Light illumination

>15000mcd

Operating time★③

12 hours

Data storage

Internal storage: ≥10000 traces, External storage: USB memory

Dimensions

232 mm (W) × 161 mm (H) × 70 mm (D)

Weight

1.6 kg (including internal battery and protectors, excluding OTDR unit and options)

Notes:
★①. Minimum pulse width, return loss: ≥55 dB (≥40 dB for 850/1300 nm), group refractive index: 1.5, the unsaturated peak level ＜1.5dB.

★②. Minimum pulse width, group refractive index: 1.5, the backscatter level is >0.5dB of the normal level. For SMF, at 1310nm, return loss: ≥55dB. For MMF, at 850nm, return loss: ≥40dB.

★③. New Battery

All specifications valid at 23°C ± 2°C (73.4°F ± 3.6°F) unless otherwise specified.
