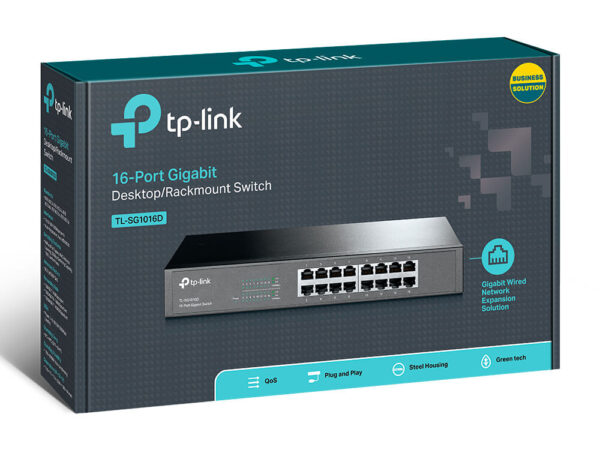

Tp-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

Specifications

Switch
Certification FCC, RoHs
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% Non-Condensing; Storage Humidity: 5%~90% Non-Condensing
Fan Fanless
Max Heat Dissipation 33.93BTU/H
Package Contents 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Physical 33.93BTU/H
Power 100-240VAC, 50/60Hz
Data Transfer Rate 23.8Mpps
Data Link Protocol IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Memory 32Gbps
Warranty 1 Year
Mouse
Tracking Method Store-And-Forward
Description

You Now Have The Choice To Go Green When Upgrading To A Gigabit Network! This New Generation TL-SG1016D 16-Port Gigabit Switch Features The Latest Innovative Energy-Efficient Technologies That Can Greatly Expand Your Network Capacity With Much Less Power. It Automatically Adjusts Power Consumption According To The Link Status And Cable Length To Limit The Carbon Footprint Of Your Network.

Power Down Idle Ports
When A Computer Or Network Equipment Is Off, The Corresponding Port Of A Traditional Switch Will Continue To Consume Considerable Amounts Of Power. The TL-SG1016D Can Automatically Detect The Link Status Of Each Port And Reduce The Power Consumption Of Ports That Are Idle.

Power Budget According To Cable Length
Ideally, Shorter Cables Would Use Less Power Because Of Less Power Degradation Over Their Length; This Is Not The Case With Most Devices As They Will Use The Same Amount Of Power Across The Cable Regardless Of Whether It Is 10 Or 50 Meters (32.8 Or 164.0 Feet )In Length. The TL-SG1016D Analyzes The Length Of The Ethernet Cable Connected And Adjusts The Power Usage Accordingly, Rather Than Keeping The Power Consumption In A Conventional Solution.

The Auto Features Of This Gigabit Switch Make Installation Plug And Play And Hassle-Free. No Configuring Is Required. Auto MDI/MDIX Eliminates The Need For Crossover Cables. Auto-Negotiation On Each Port Senses The Link Speed Of A Network Device (10, 100, Or 1000 Mbps) And Intelligently Adjusts For Compatibility And Optimal Performance.

* Maximum Power Savings When Compared To A TP-LINK Conventional Switch, The Real Saving Rate May Vary Based On The Usage Condition.

The TL-SG1016D 16-Port Gigabit Switch Provides An Easy Way To Make The Transition To Gigabit Ethernet. All 16 Ports Support Auto MDI/MDIX, No Need To Worry About The Cable Type, Simply Plug And Play. Moreover, With The Innovative Energy-Efficient Technology, The TL-SG1016D Can Save Up To 40%* Of The Power Consumption, Making It An Eco-Friendly Solution For Your Business Network.

Featured With 16 10/100/1000Mbps Ports, TL-SG1016D Greatly Expands Your Network Capacity, Enabling Instant Large Files Transferring. So，Power Users In The Home, Office, Workgroup Or Creative Production Environment Can Now Move Large, Bandwidth-Intensive Files Faster. Transfer Graphics, CGI, CAD, Or Multimedia Files Across The Network Instantly.
