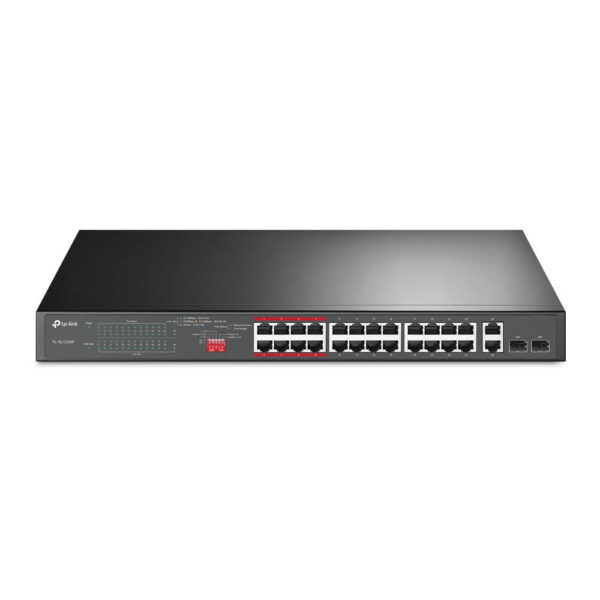

Tp-Link TL-SL1226P 24-Port Gigabit Unmanaged PoE+ Switch

Tp-Link TL-SL1226P 24-Port Switch Overview

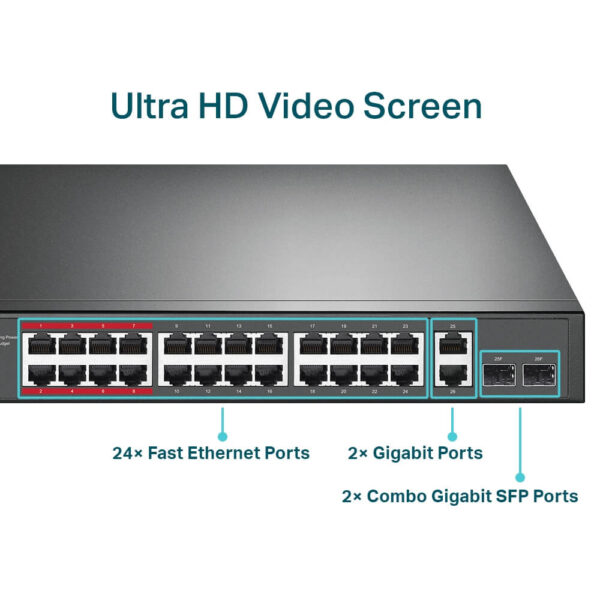

Interface 24× PoE+ 10/100 Mbps RJ45 Ports
2× 10/100/1000 Mbps RJ45 Ports
2× Combo Gigabit SFP Slots
Network Media 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fan
Physical Security Lock Yes
Power Supply 100-240 VAC, 50/60 Hz
Backup Bandwidth 8.8 Gbps
Packet Forwarding Rate 6.5472 Mpps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af Compliant
PoE Ports: Port 1 – Port 24
PoE Power Budget: 250 W
Mac Address Table 8 K
Jumbo Frame 10 KB
Switching Capacity 8.8 Gbps
Dimensions 17.3 × 7.1 × 1.7 In
Max Power Consumption 18.32 W (220/50 Hz. No PD Connected)
294 W (220/50 Hz. With 250 W PD Connected)
Max Heat Dissipation 62.47 BTU/H (No PD Connected)
1002.54 BTU/H (With 250 W PD Connected)
Tp-Link TL-SL1226P 24-Port Switch In Bangladesh
Professional High Power 24-Port PoE+ Switch,Plug And Play, With PoE Transmission For Surveillance Up To 250 M

Dedicated 24-Port PoE+ Switch For

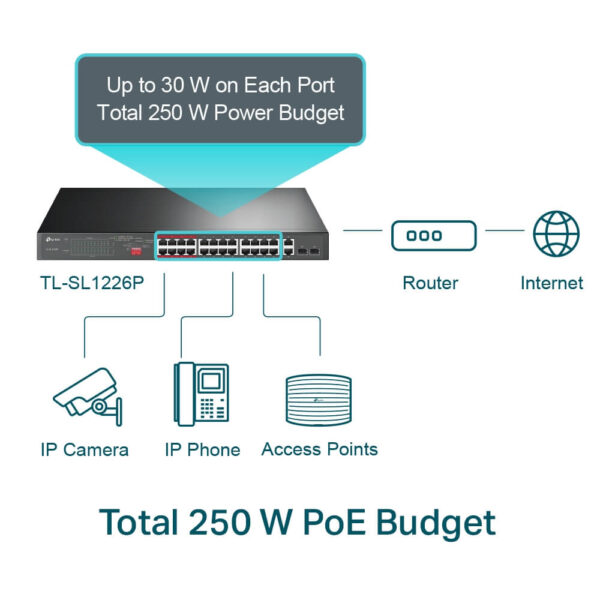

Wide Range Of Applications With 250 W PoE Budget.Compliance With The 802.3af/At PoE+ Standard Supports Up To 30 W On Each PoE Port. The Total 250 W PoE Power Budget* For The 24× PoE Ports Makes It Has Wide Range Of Applications, Such As Surveillance, Offices, Dormitories, And Small Businesses. It Is Fully Compatible With IP Cameras, Access Points, IP Phones, Computers, Printers, And Etc.

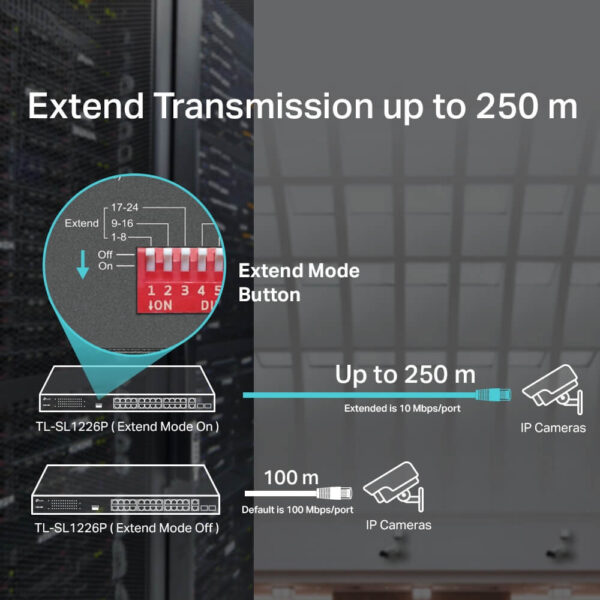

Dedicated Design For IP Surveillance—Up To 250 M Transmission

With Extend Mode, The PoE Transmission Distance Reaches Up To 250 M*—Perfect For IP Camera Deployment In Large Areas.Priority Video Quality Guaranteed

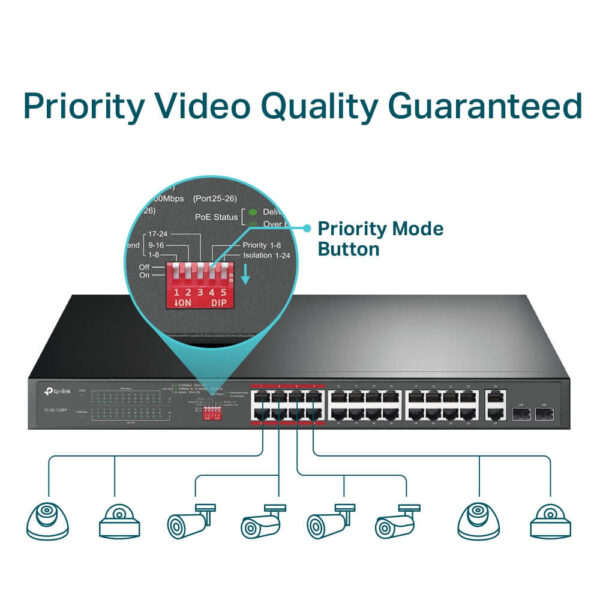

Quality Of Sensitive Applications Like Video Monitoring In Critical Business Areas Is Guaranteed By Offering Higher Priority Options For Ports 1–8 When One-Touch Priority Mode Is On.

One-Click Traffic Separation For Ports 1-24

With One Click, Isolation Mode Easily Divides Traffic For Ports 1–24 To Avoid Snooping And Tampering. This Enables The Switch To Isolate Broadcast Storm, Improving LAN Security And Data Transmission.

Smooth HD Video Monitoring

2× Gigabit RJ45 Ports And 2× Combo Gigabit SFP Ports Ensure Smooth Streaming Even When 24× HD IP Cameras Work Simultaneously.

Wide Operating Temperature With Good Heat Dissipation

Durable Metal Casing And Professional Heat Dissipation Design Ensure The Wide Operating Temperature (0–50℃) With Reliability.
