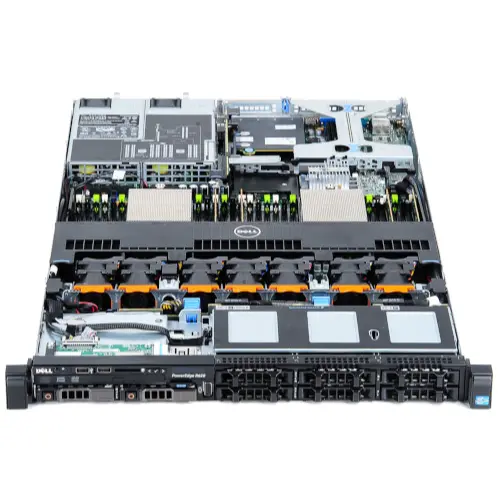

Dell Poweredge R630 1U Rack Mount Server

Dell Poweredge R630 1U Rack Mount Server - Detailed Description
Dell PowerEdge R630 Rack Server | Dual Xeon E5 v3 | DDR4

The Dell PowerEdge R630 is one of Dell's most popular 13th Generation enterprise servers, engineered for businesses that require exceptional computing power within a compact 1U rack form factor.

Powered by dual Intel Xeon E5-2600 v3 processors, the server provides excellent multi-core performance for virtualization, VMware, Hyper-V, Microsoft applications, ERP systems, SQL databases, web hosting, cloud infrastructure, and storage servers.

With support for up to 24 DDR4 DIMM slots, the R630 offers exceptional memory capacity, making it suitable for demanding enterprise workloads.

The server supports multiple RAID controller options, enterprise SAS/SATA drives, NVMe SSDs, redundant power supplies, integrated iDRAC remote management, and flexible networking options, making it a reliable solution for modern IT infrastructure.

Whether you are expanding your data center or upgrading your business server, the Dell PowerEdge R630 provides enterprise-grade reliability, scalability, and performance.

Key Features
Compact 1U Rack Mount Design
Dual Intel Xeon E5-2600 v3 Processor Support
Intel C610 Enterprise Chipset
Up to 24 DDR4 ECC Registered Memory Slots
Supports SAS, SATA and SSD Storage
Up to 4 NVMe PCIe SSD Support
Multiple RAID Controller Options
Redundant Hot-Plug Power Supplies
Integrated Dell iDRAC Remote Management
Flexible 1GbE & 10GbE Networking
Enterprise-Class Performance
Ideal for Virtualization and Cloud Computing
Specifications
Feature

Details

Model

Dell PowerEdge R630

Form Factor

1U Rack Mount

Drive Bays

Up to 10 x 2.5-inch SFF (Configuration Dependent)

Chipset

Intel C610 Series

Processor Socket

Dual Socket

Installed Processor

2 x Intel Xeon E5-2680 v3

CPU Cores

12 Cores per CPU (24 Total)

CPU Frequency

2.50 GHz Base, Up to 3.30 GHz Turbo

Cache

30MB Smart Cache per CPU

Memory

16GB DDR4 ECC Registered (Upgradeable)

Memory Slots

Up to 24 DIMMs

Maximum Memory

Up to 1.5TB DDR4 LRDIMM (configuration dependent)

Storage Support

SAS, SATA, SSD

NVMe Support

Up to 4 PCIe NVMe SSD

RAID

PERC S130, H330, H730, H730P, H830

Network

4 x 1GbE / Optional 10GbE

Expansion Slots

Up to 3 PCIe 3.0

Remote Management

Dell iDRAC Express

Power Supply

2 x 750W Hot-Plug Redundant PSU

Rails

Optional

Operating Systems

Windows Server, VMware ESXi, Ubuntu Server, CentOS, Red Hat Enterprise Linux

Applications
The Dell PowerEdge R630 is suitable for:

Virtualization (VMware, Hyper-V, Proxmox)
Cloud Infrastructure
Database Server
Web Hosting
File Server
Active Directory
ERP Software
CCTV Storage Server
Email Server
Application Server
AI Development Environment
Enterprise Networking
Why Choose Dell PowerEdge R630?
Enterprise-grade reliability
High-density computing
Excellent virtualization performance
Flexible storage configuration
DDR4 ECC memory
NVMe acceleration
Dual processor architecture
Remote server management
Low power consumption
Easy maintenance
Ideal for data centers
Long-term scalability
Package Contents
Dell PowerEdge R630 Server
2 × Intel Xeon E5-2680 v3 Processor
16GB DDR4 ECC Registered RAM
RAID Controller
Dual 750W Power Supply
Power Cables
iDRAC Express
Quick Installation Guide
Why Buy from Workstation Communication?
Genuine Enterprise Server
Competitive Price in Bangladesh
Technical Support
Fast Nationwide Delivery
Professional Installation Support
Business & Corporate Solutions
Warranty Support
Bulk Order Facility
FAQs
Is the Dell PowerEdge R630 suitable for virtualization?
Yes. It is highly recommended for VMware ESXi, Hyper-V, and Proxmox virtualization environments.

Does it support NVMe SSD?
Yes. It supports up to 4 PCIe NVMe SSDs depending on the configuration.

Can I upgrade the RAM?
Yes. The server supports up to 24 DDR4 ECC memory slots with a maximum capacity of approximately 1.5TB (using supported LRDIMMs).

Does it include RAID?
Yes. It supports Dell PERC RAID controllers including H330, H730, H730P, and H830.

Is remote management available?
Yes. It includes Dell iDRAC Express for remote server management.

What operating systems are supported?
Windows Server, VMware ESXi, Ubuntu Server, Red Hat Enterprise Linux, CentOS, SUSE Linux Enterprise Server, and other compatible enterprise operating systems.
